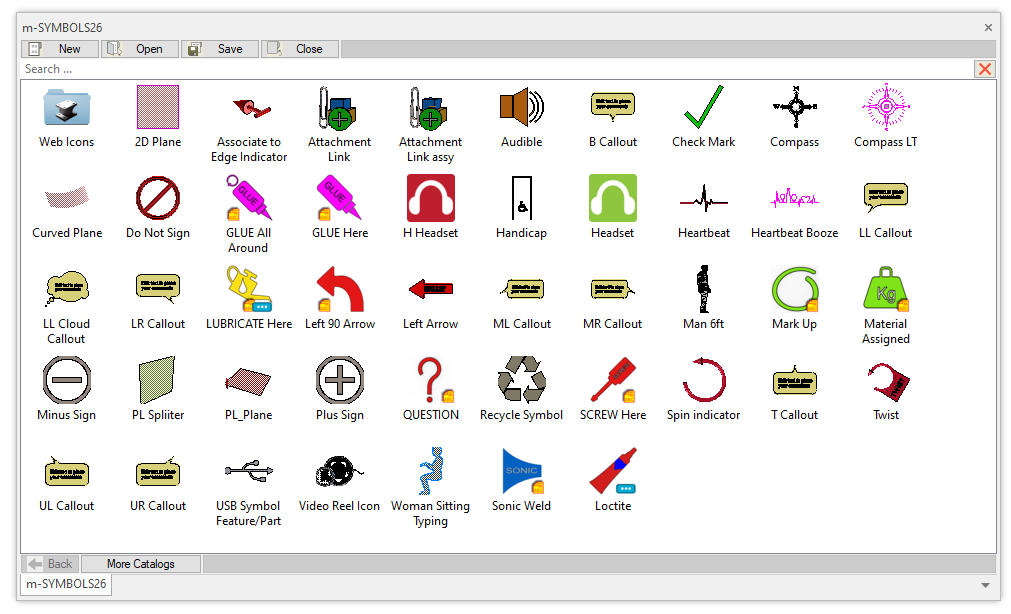

An IronCAD catalog exclusively developed by Magnacad, LLC with a varied collection of 3D markup type components to help assign comments to 3D models and icon creation.

Sonic Weld

New symbol to indicate what parts need to be sonic welded together.

LocTite

New symbol to indicate parts that need thread locker. This symbol is a variant symbol that currently provides for two (2) Loctite thread locker grades; Red 271 and Blue 242.
