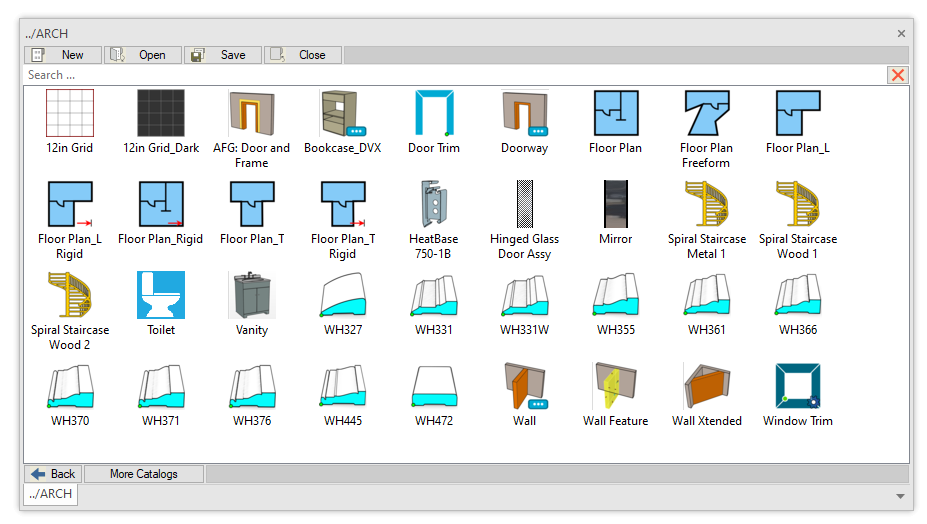

The 0-ARCH sub-group provides some basic architectural components such as rooms, doorways, and fixtures.





12in Grid

12in Grid_Dark

These parts are zero thickness surface modesl which are 10ft x 10ft square by default. Of course you can edit the size as desired. A grid texture has been applied visually to show a 12" square grid pattern with quarter sub lines. One in a light transparent color and the other in a dark mode color. This is accurate and is intended for quick conceptual feedback. You cannot snap to the grid. The models are set to be Ghosted by default. So to edit it, you will need to Un-Ghost first.

AFG: Door and Frame


Bookcase_DVX


Doorway


Door Trim

A structured part that allows you  to resize the door frame trim as required and the trim shape will update automatically. You can edit the trim shape as required or use the predefined case profiles available as shown below.

Floor Plan

Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan Freeform

Allows you to sketch any desired floor plan shape require which maintaining wall thickness. Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan_L

Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan_L Rigid

Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan_Rigid

Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan_T

Quick Parameter Display has been added to quickly modify "Ceiling Height".

Floor Plan_T Rigid


HeatBase 750-1B

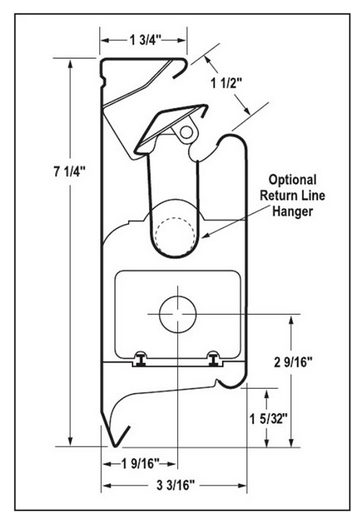

Baseboard heating assembly accurate to Haydon specs. Includes IC-MECH web hook to product site.

Hinged Glass Door Assy


Mirror


Spiral Staircase Metal 1


Spiral Staircase Wood 1


Spiral Staircase Wood 2


Toilet


Vanity


Wall


Wall Feature


Wall Xtended


Window Trim

Structured Part of Window molding frame. Operates the same as the Door Trim.
