TUBE

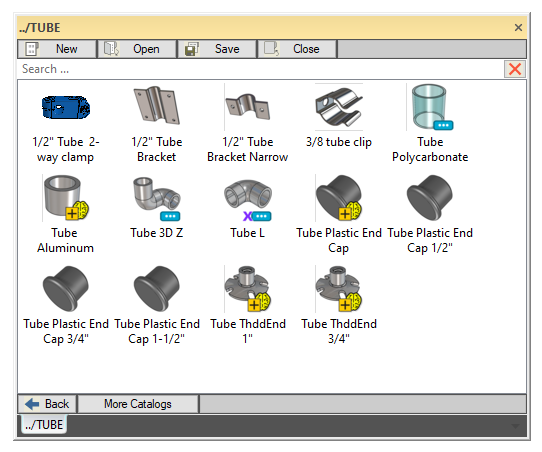

The 0-TUBE sub-group is a collection of Tube variant models and ancillary tube components.
|
|
Tube L |
Added "L1" attachment points to be used with the standard "Tube Aluminum" component for enhanced SmartAssembly capabilities. Also added Quick Parameter tool for the bend radius and both leg lengths.
|
|
|
Tube Polycarbonate |
Replaced the Design Variations with the "Quick Parameter" pop-up dialog. Renamed Part name and cleaned up intellishape box. |
|
|
Tube Aluminum |
Added "L1" attachment points to be used with the standard "Tube L" component for enhanced SmartAssembly capabilities. |
|
|
Tube 3D Z |
Tool allows you to create Tubing in all 3 axes with ease. |
