The 0-SURFACES sub-group is a collection of Zero-Thickness Intellishapes that can be used to remove material  through  drag-n-drop and Boolean Subtract processes.

Cut Loft-3 Arc

Lofted Arcs to generate a subtraction lofted surface. Direct Dimension driven. Dropped as an subtract IntelliShape™. You can edit the loft cross-sections as desired.

Cut Loft-3 Arc Free.

Lofted Arcs to generate a subtraction lofted surface. Dropped as an subtract IntelliShape™. You can edit the loft cross-sections as desired eithout dimensional constraints.

Curved Plane

a simply extruded surface of an arc.

Loft-3 Arc

Lofted Arcs to generate a zero-thickness lofted surface. Direct Dimension driven. Dropped as a part to use in Boolean Cut functions.

Surf Arcs

Extruded zero-thickness surface. Cross section consists of 2 tangent arcs that can be edited as desired.

Surf Box

Extruded zero-thickness rectangle. Cross section consists of rectangular geometry that can be edited as desired.

Surf Cylinder

Extruded zero-thickness circle. Cross section consists of circle geometry that can be edited as desired.

Surf Sphere

Spun zero-thickness half circle. Cross section consists of half circle geometry that can be edited as desired.

Surf Zero

Extruded zero-thickness surface. Cross section consists of line geometry that can be edited as desired.

Surf Zee

New zero-thickness surface in 3 linear edges to form a "zee" shape. Edit via shape handles or edit cross-section.

12in Grid

A zero thickness surface model which is 10ft x 10ft square by default. Of course you can edit the size as desired. A grid texture has been applied visually to show a 12" square grid pattern with quarter sub lines. This is a light transparent color. This is accurate and is intended for quick conceptual feedback. You cannot snap to the grid. The model is set to be Ghosted by default. So to edit it, you will need to Un-Ghost first.

12in Grid_Dark

Same as 12in Grid only in a dark theme.

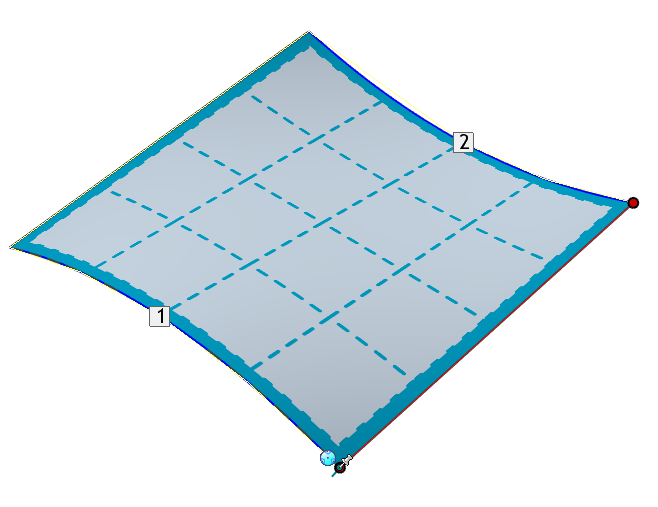

Loft-2 Splines

Simple Loft surface with a start and end cross-section for editing. The sections are Splines to allow for more complex geometry. NOTE: You can only editing the existing geometry by maintaing the match endpoints. You cannot delete the geometry but you are able to split is as required.

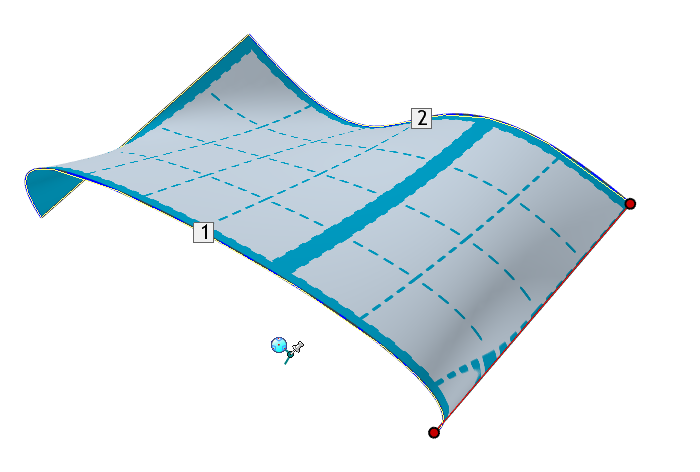

 example of modification >

Surf Waves

A lofted surface shape of multiple "waves".
